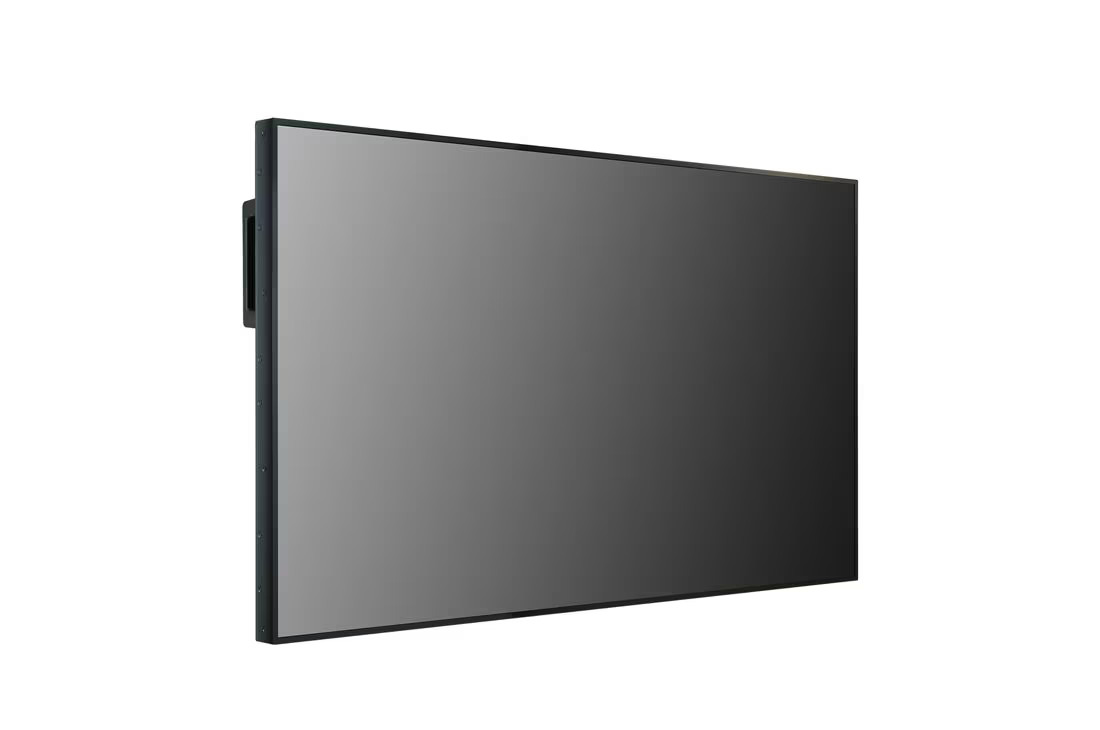

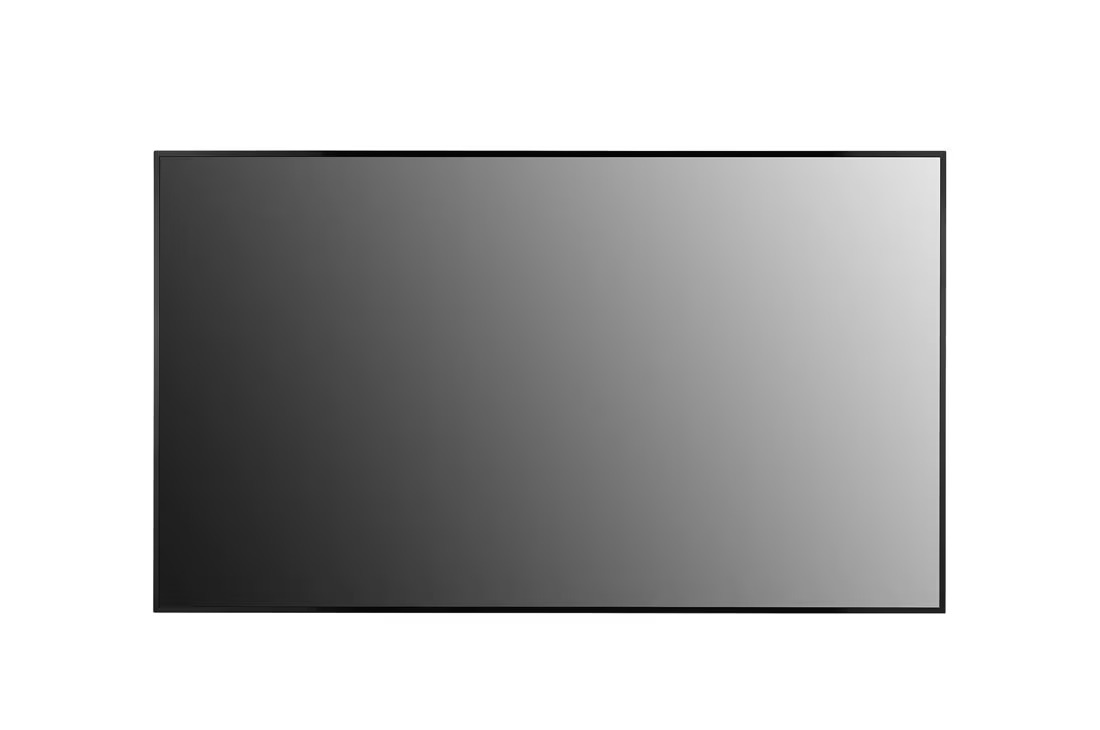

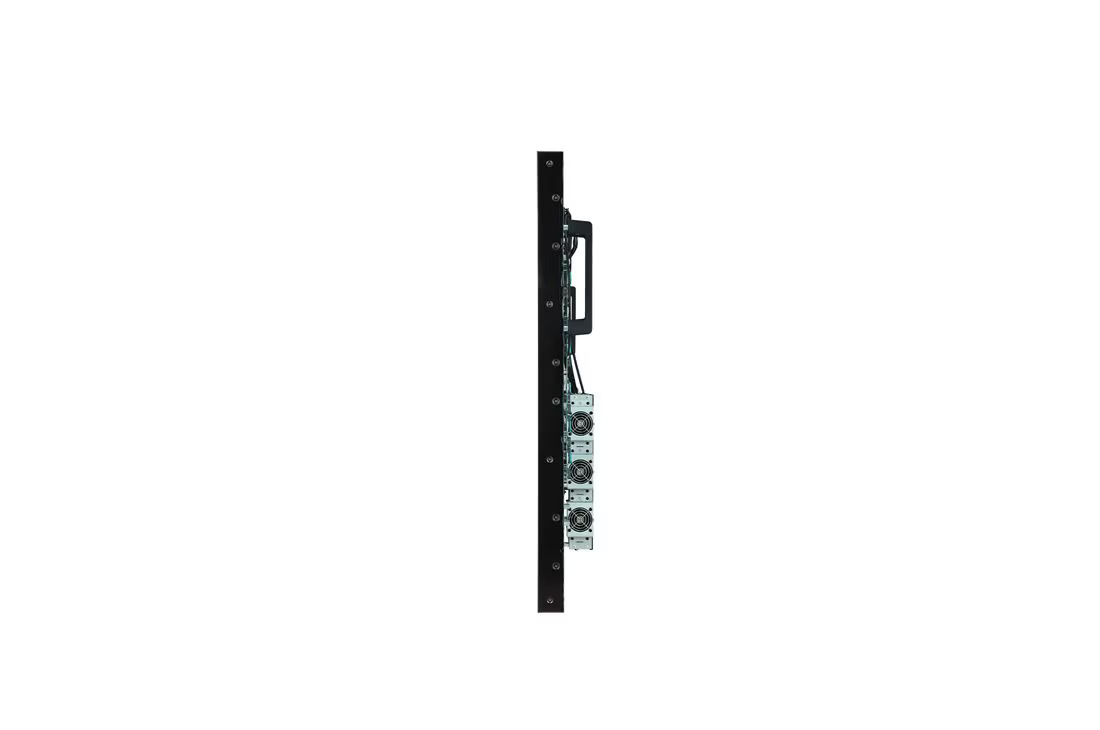

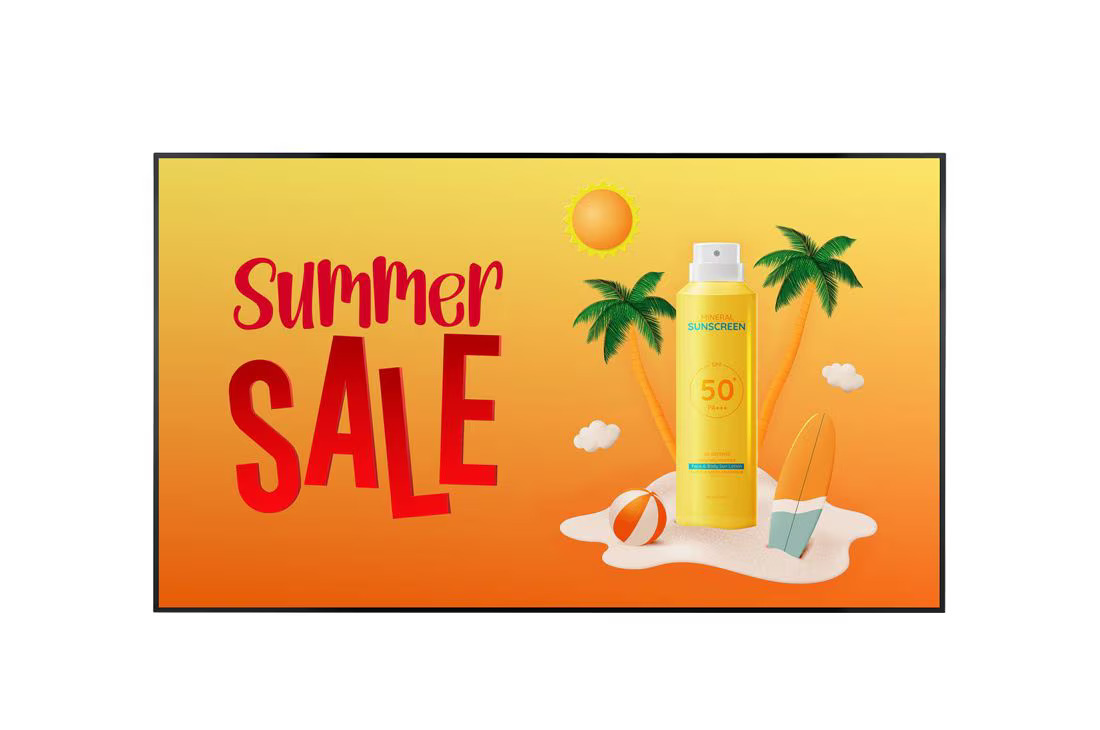

LG Open-frame Display (75XF3PS-BP)
- UL Verified Display Anti-discoloration Characteristics
- Resolution : 3,840 × 2,160 (UHD)
- Brightness : 3,000 nit (Typ.), 2,800 nit (Min.)
- Portrait / Landscape
- Slim Design
- Conformal Coating

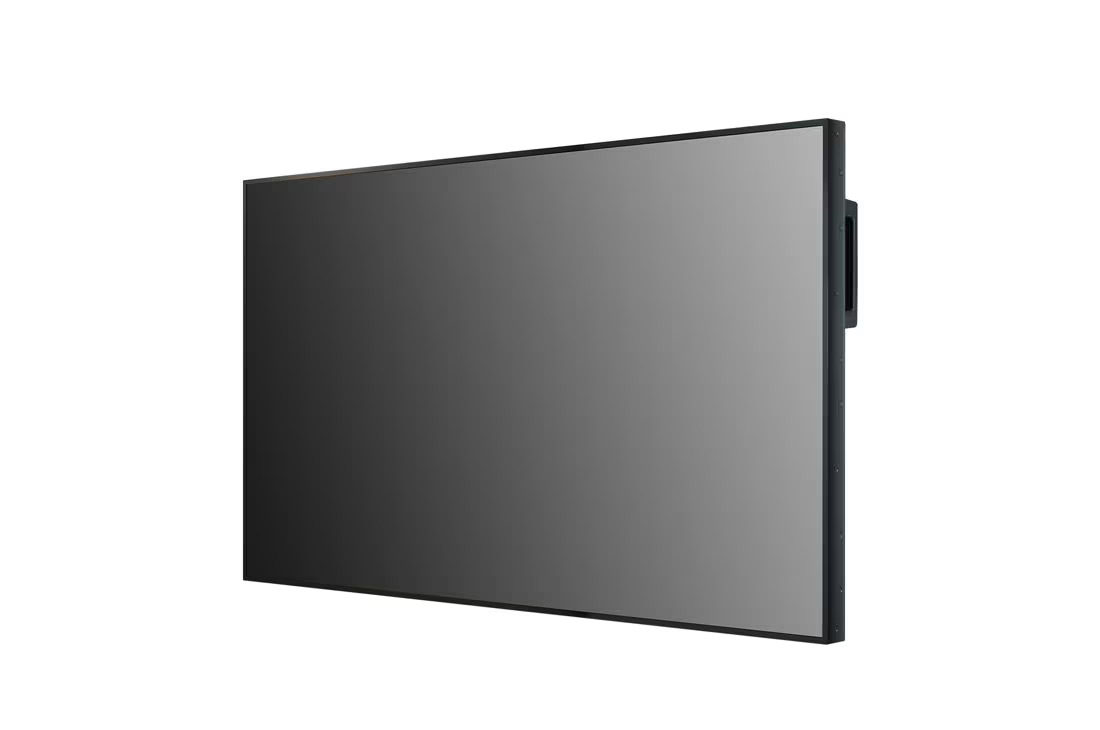

LG Open-frame Display (75XF3PS-BP)

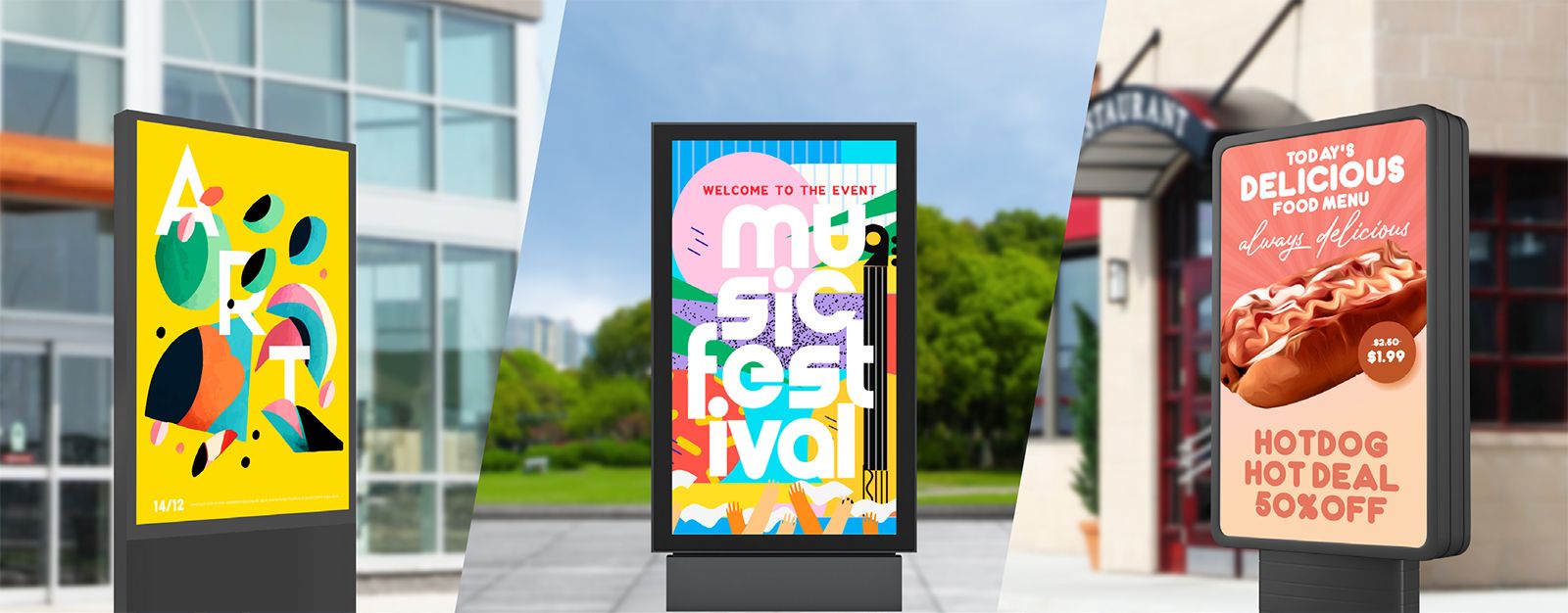

Open-frame Outdoor Display
LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the flexibility to tailor the display to your exact preferences.
* Please reach out to your local sales representatives for detailed casing guide.

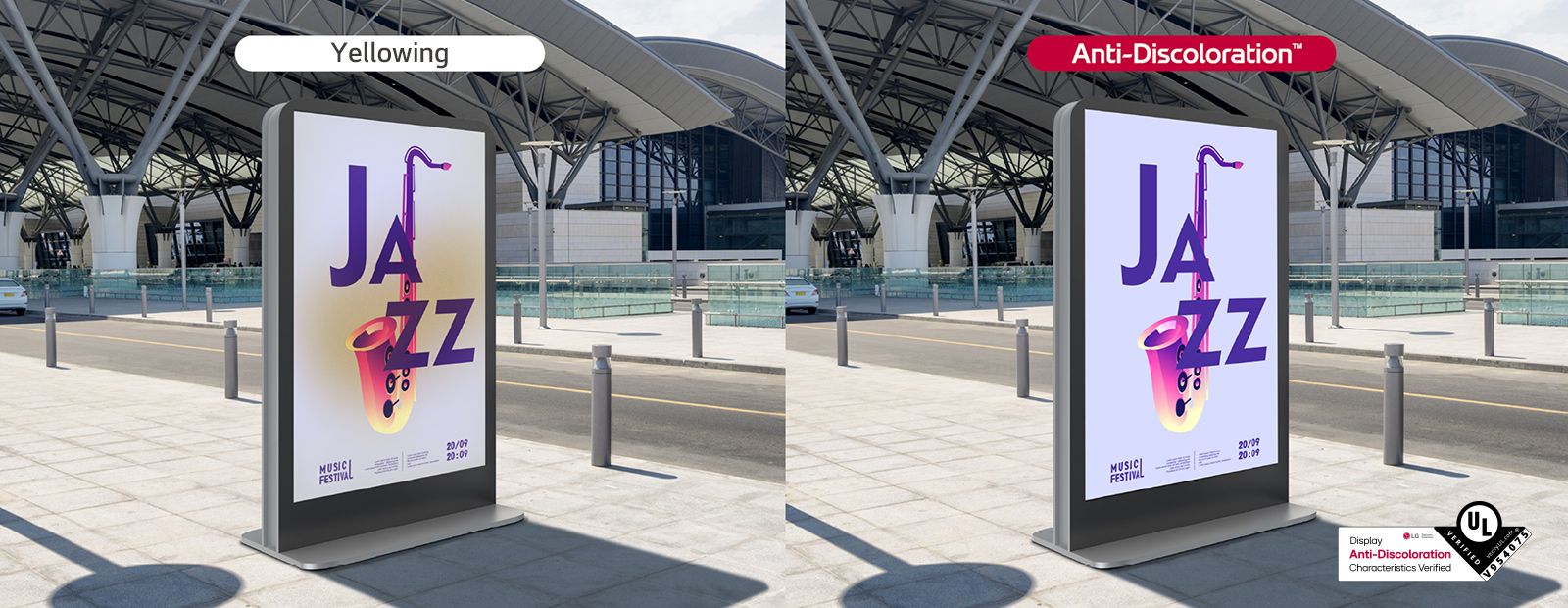

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while maintaining display quality and performance stability.
* World’s first UL Verification in the manufacturing industry
** For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
*** The comparison images are simulated for illustrative purposes only and do not represent the actual performance of the products.
** For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
*** The comparison images are simulated for illustrative purposes only and do not represent the actual performance of the products.

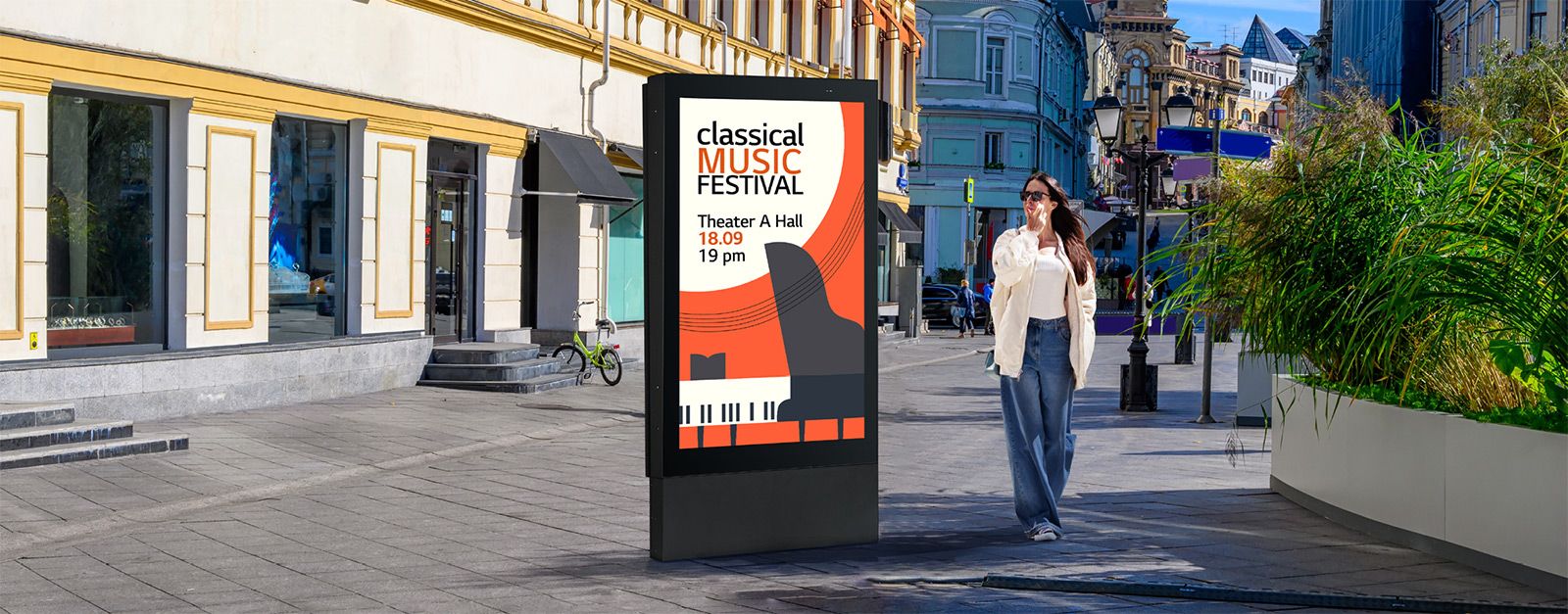

High Visibility Under Strong Sunlight
With outstanding high brightness of 3,000 nits (Typ.), the XF3PS outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

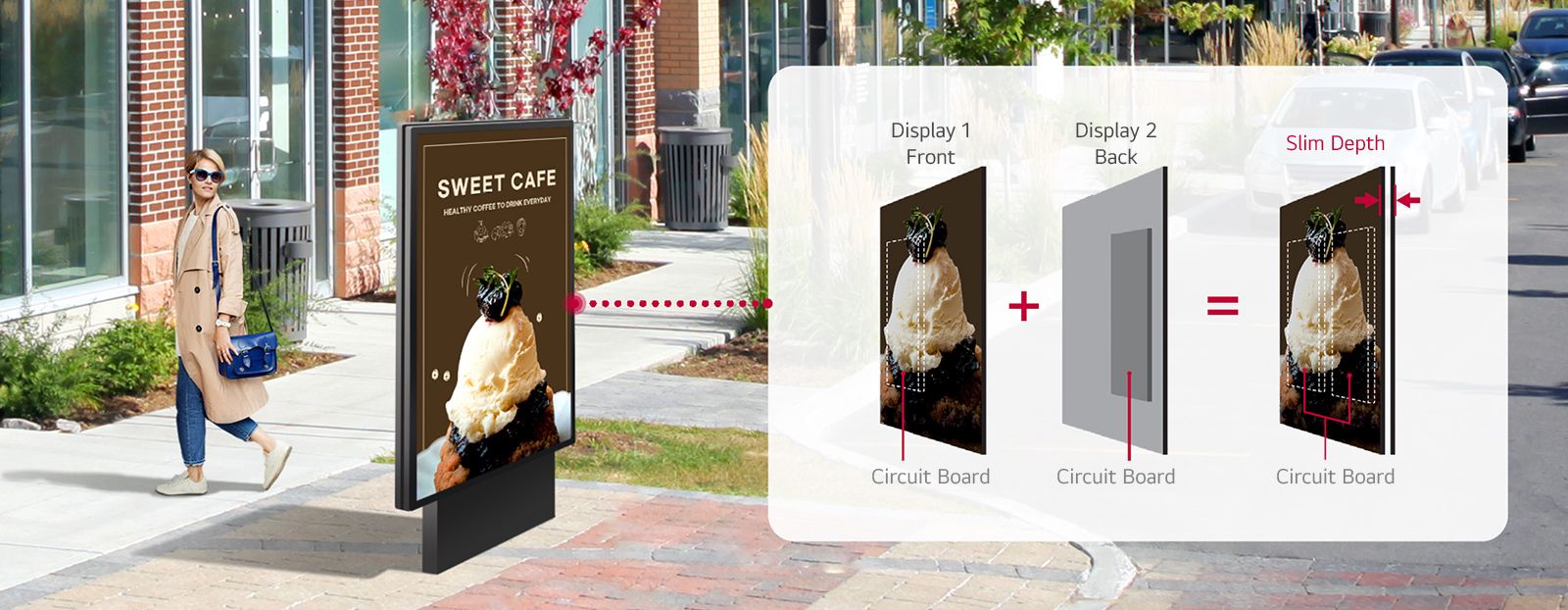

Optimized Design for
Double-sided Display
The XF3PS, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient doublesided display.
* The conventional model refers to the XF3C.
Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3PS uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits). The test was conducted internally.
** Specific features can differ from circumstances.
*** Actual results may vary depending on the use environment.
**** LG ConnectedCare is sold separately.
** Specific features can differ from circumstances.
*** Actual results may vary depending on the use environment.
**** LG ConnectedCare is sold separately.

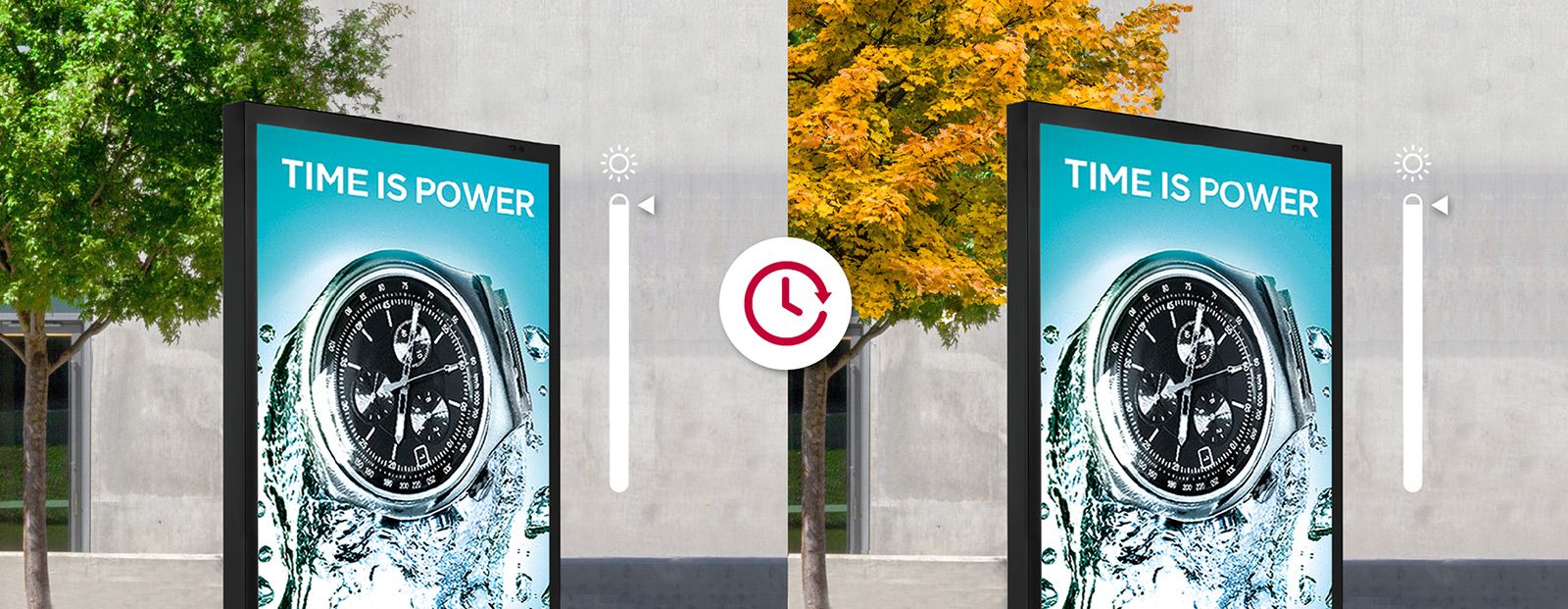

Smart Brightness Compensation
The built-in BLU* sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.
* Back Light Unit
Vandalism Alert
If the sensor detects the XF3PS experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.

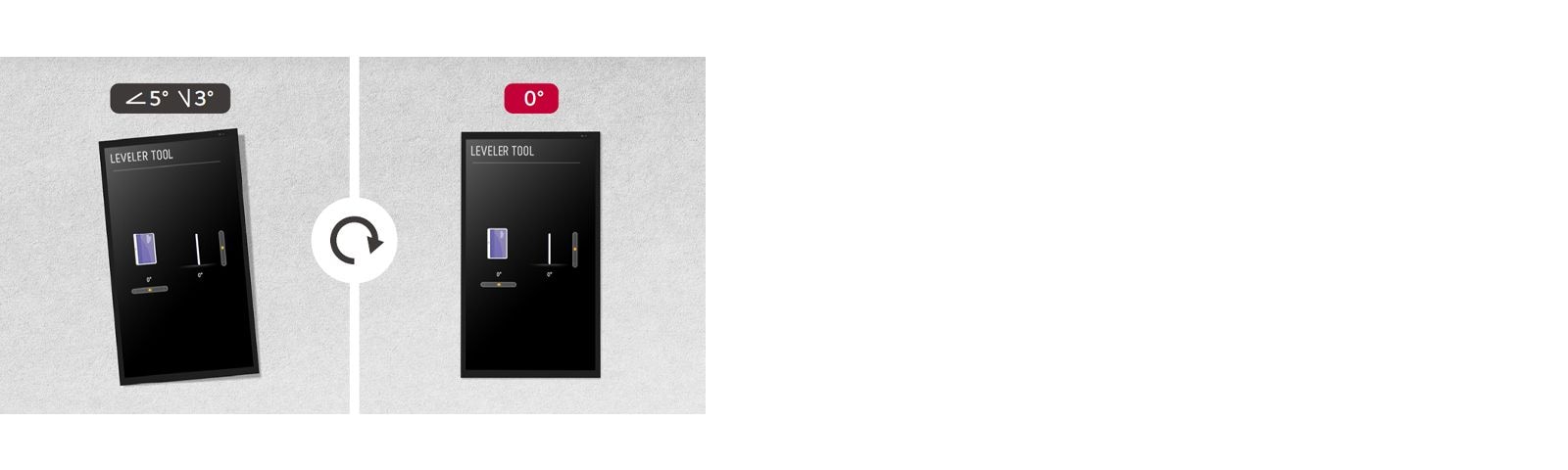

Easy Installation
For easy installation, the XF3PS is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.
* The availability of leveler tool feature may differ by model.
High-performance with webOS 6.1
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XF3PS for smooth execution of several tasks. The XF3PS enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.
* SoC : System on Chip
** GUI : Graphical User Interface
Wide Range of Operating Temperature
The XF3PS can be used under a wide range of operating temperature from 0℃ to 50℃.
* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight)
** Actual performance may vary depending on the use environment.
Conformal Coating
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.
* Thin protective films/breathing membranes that filter water vapor and solid debris

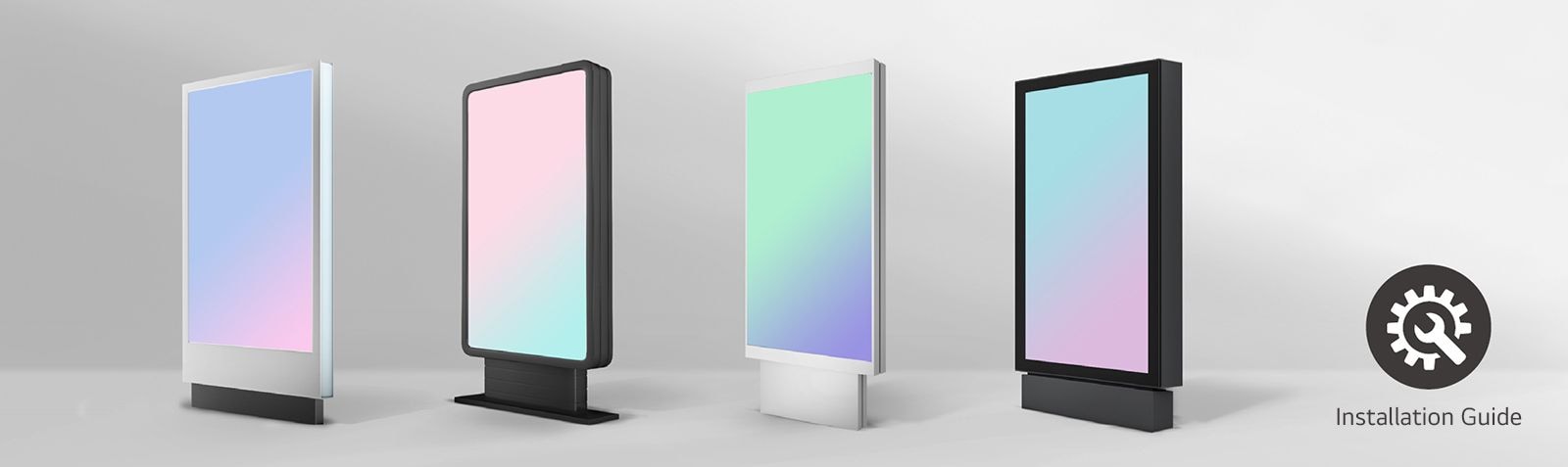

Installation Guide for a Customized Casing
LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.
Web Monitoring
The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* Enabled by wired LAN connection
Info
-
- Product
- Outdoor
- Year
- Y24
-
- Month
- M11
Panel
-
- Screen Size (Inch)
- 75″
- Panel Technology
- IPS, M+
-
- Back Light Type
- Direct
- Aspect Ratio
- 16:9
-
- Native Resolution
- 3840×2160 (UHD)
- Refresh Rate
- 60Hz
-
- Brightness
- 3,000nit (Typ), 2,800nit(Min)
- Contrast Ratio
- 1200:1 (Typ)
-
- Dynamic CR
- 500,000:1
- Color gamut
- NTSC 68%
-
- Viewing Angle (H x V)
- 178 x 178
- Color Depth (Number of Colors)
- 10bit, 1.07 Billion colors
-
- Response Time
- 8ms (G to G)
- Surface Treatment (Haze)
- 3%
-
- Life time
- 50,000 Hrs (Typ)
- Operation Hours (Hours/Day)
- 24/7
-
- Portait / Landscape
- Yes / Yes
- QWP (Quarter Wave Plate)
- Yes
Connectivity(Jack Interface)
-
- HDMI IN
- Yes((2), HDCP2.2
- DP IN
- Yes(1), HDCP1.3
-
- RS232C IN
- Yes(1) (4pin phone jack)
- RJ45(LAN) IN
- Yes(1)
-
- USB IN
- USB2.0 Type A (1)
- DP Out
- Yes(1), Input DP/HDMI
-
- External Speaker Out
- Yes(1, L/R, 10W+10W) , (4pin phone jack)
- RS232C Out
- Yes(1) (4pin phone jack)
-
- IR Out
- Sharing RS232C Out
Mechanical
-
- Bezel Color
- Black
- Bezel Width
- Even bezel : 11.8mm
-
- Weight (Head)
- 35.7 kg
- Packed Weight
- 47.0 Kg
-
- Monitor Dimensions (W x H x D)
- 1675.2 x 953.6 x 128.9mm
- Carton Dimensions (W x H x D)
- 1816 x 1106 x 285mm
-
- Handle
- Yes(2)
HW Feature
-
- Internal Memory (eMMC)
- 8GB
- Temperature Sensor
- Yes
-
- Auto Brightness sensor
- Yes
- Current Sensor
- Yes
-
- BLU Sensor
- Yes
- Humidity Sensor
- Yes
-
- Local Key Operation
- Yes
- FAN (Built-in)
- Yes
SW Feature
-
- OS Ver. (webOS)
- webOS6.0
- Local Contents Scheduling
- Yes
-
- Group Manager
- Yes
- USB Plug & Play
- Yes
-
- Fail over
- Yes
- Booting Logo Image
- Yes
-
- No Signal Image
- Yes
- RS232C Sync
- Yes
-
- Local Network Sync
- Yes
- Backlight Sync
- Yes
-
- Video Tag
- Yes(2 Video Tag)
- Play via URL
- Yes
-
- Screen Rotation
- Yes
- External Input Rotation
- Yes
-
- Gapless Playback
- Yes
- Tile Mode Setting
- Yes (Max. 15×15)
-
- Setting Data Cloning
- Yes
- SNMP
- Yes
-
- ISM Method
- Yes
- Auto Set ID
- Yes
-
- Status Mailing
- Yes
- Control Manager
- Yes
-
- Smart Energy Saving
- Yes
- PM mode
- Yes
-
- Wake on LAN
- Yes
- Network Ready
- Yes
-
- HDMI-CEC
- Yes
- SI Server Setting
- Yes
-
- webRTC
- Yes
- Pro:Idiom
- Yes
-
- Brightness Compensation
- Yes
Environment Conditions
-
- Operation Temperature
- 0 °C to 50°C (w/o Direct Sunlight)
0 °C to 40°C (Direct Sunlight)
- Operation Humidity
- 10 % to 80 %
Power
-
- Power Supply
- AC 100-240V~, 50/60Hz
- Power Type
- Built-In Power
Power Consumption
-
- Typ.
- TBD
- Max.
- TBD
-
- BTU (British Thermal Unit)
- TBD
- Smart Enegy Saving (70%)
- TBD
-
- DPM
- TBD
- Power off
- 0.5W ↓
Certification
-
- Safety
- CB / NRTL
- EMC
- FCC Class “A” / CE / KC / VCCI
-
- ErP / Energy Star
- Yes / No
Software Compatibility
-
- SuperSign CMS
- Yes
- SuperSign Control+
- Yes
-
- SuperSign Cloud
- Yes
- Connected Care
- Yes
Language
-
- OSD
- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
Accessory
-
- Basic
- Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea) Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea)
Special Feature
-
- Conformal Coating (Power Board)
- Yes
- Power protection
- Yes
-
- Direct Sunlight
- Yes
Product Dedicated Feature
-
- Noise level
- TBD
