GENEVISION Interactive Capacitive Touch Foil Film PCAP Touch Screen Kiosk Transparent Nano Touch Wall (MGF-320)
Pretul afisat contine TVA (21%).
GENEVISION Interactive Capacitive Touch Foil Film PCAP Touch Screen Kiosk Transparent Nano Touch Wall (MGF-320)
Product Details
Highlight: ir touch screen frame, touch screen digital frame
|
Product Name:
|
Touch Foil Film
|
Touch Screen Type:
|
Nano Touch
|
|
Touch Points:
|
10 Points Multi Touch
|
Optional Size:
|
From 17″ To 100″
|
|
Colour:
|
Transparent
|
Connect Port:
|
USB Or RS232
|
|
Installlation:
|
Landscape Or Portrait
|
Warranty:
|
One Year
|
Features & advantage:
1.Stable quality,9 years life time.
2.Zero pressure and precise touch,fast response.
3. Optional size:from 17″ to 100″
4.Water-proof, Ultraviolet-proof, Vandal resistant,easy clean.
5.Suitable for different environment of indoor and outdoor.
6.Flexible,could be used in innovative design and special construction .
7.Fashionable and beautiful appearance,frameless,transparent, ultrathin design.
8.The same technology of projected capacitive touch as IPAD,maximum supports 100 points now .
9.Work through galss maximum thickness of 12mm .
2.Zero pressure and precise touch,fast response.
3. Optional size:from 17″ to 100″
4.Water-proof, Ultraviolet-proof, Vandal resistant,easy clean.
5.Suitable for different environment of indoor and outdoor.
6.Flexible,could be used in innovative design and special construction .
7.Fashionable and beautiful appearance,frameless,transparent, ultrathin design.
8.The same technology of projected capacitive touch as IPAD,maximum supports 100 points now .
9.Work through galss maximum thickness of 12mm .
Specification:
| Available size | 42-84 inch | Touch points | ≤10 points |
| Series | ME-Mini | Touch deviation | ≤0.5mm |
| The number of sensors | TX70 RX142(≤55inch)
TX80 RX142(>55inch) |
Scanning speed | 10ms /frame |
| Energy consumption | 2W | Drive Type | Drive Free |
| Arm Reject | Yes | Custom | not support custom |
| Point report Rate | >100 | Film thickness | ≤100um |
| Light transmission rate | Above 93% | Supply voltage | 5V USB |
| Transmission | USB2.0 | Warranty | 1 Year |
| Program-level | Kernel-level low-level drive | Technical certification | CE,ilac-MRA,CNAS,CAL,CMA |
| Ambient temperature | -20℃ to +70℃ | Ambient lightness | Whole angle of the anti-glare |
| Touch support | Click, drag, zoom, rotate | Sensing distance | ≤20mm( glass thickness ) |
| Calibration mode | Software calibration | Program type | Andriod,Linux,Mac,Windows7/8/8.1/10(see note) |
| Transmission distance | ≤50m ( plus USB signal amplifier, etc ) | Safety distance | 2mm( refers to the distance between the LCD screen and the film) |

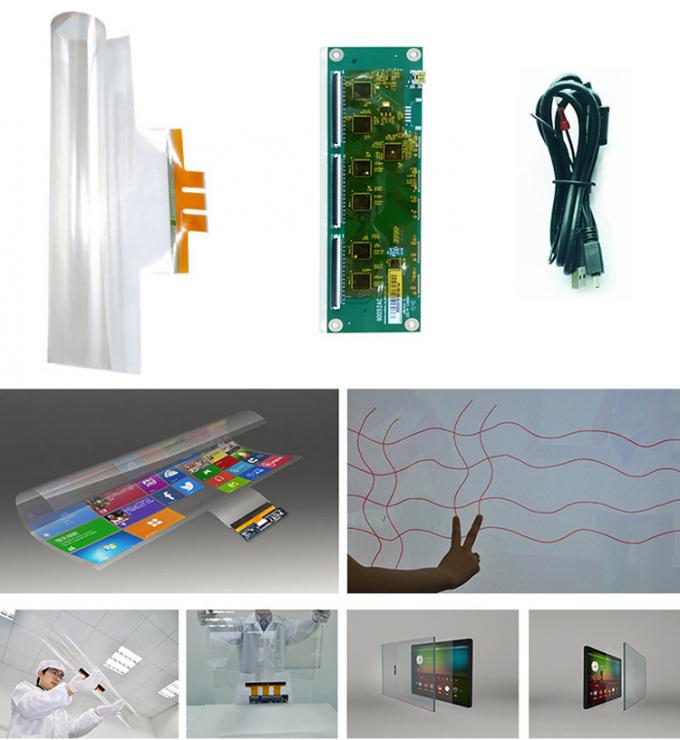

| Packing List | 1 * touch film circuit/ control board * 1 /USB cable * 1 | ||
