GENEVISION 48.8″ 4K 3840 X 720 1000nits High Brightness Stretched Bar LCD Display With DP In (MG-488)
Pretul afisat contine TVA (21%).
GENEVISION 48.8″ 4K 3840 X 720 1000nits High Brightness Stretched Bar LCD Display With DP In (MG-488)
|
Keyword:
|
Mount Digital Signage
|
Screen Size:
|
48.8inch, 1/3 Cut From 55inch
|
|
System:
|
Monitor Motherboard
|
Port:
|
HDMI In, DVI In, VGA In
|
|
Displaying Area:
|
1209.6*226.5mm
|
Touch Screen:
|
10 Point G+F Touch Screen
|
|
Installation:
|
Wall Mount
|
Overall Size:
|
1248*265mm
|
|
Brightness:
|
1000nits
|
Resolution:
|
3840*720
|
Quick details of LCD bar display :
1. 48.8inch, 55inch cut 1/3
2. 1000cd/m2 high brightness.
3. 10 point PCAP foil touch screen.
4. Tempered glass front with good looking.
5. Monitor motherboard with HDMI in, DVI in and VGA in.
6. Android and Win 10 system optional.
7. To be used for shelf edge, wall mount, music instrument open frame housing.
Description of streched screen :

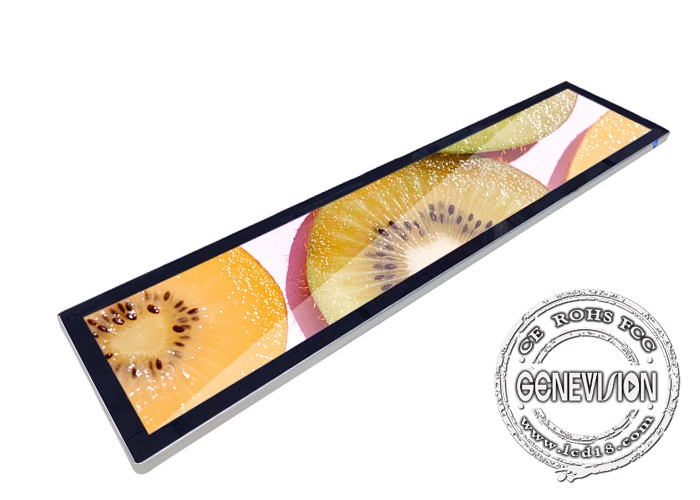

More and more media company focus on supermarket advertising opportunity, and thus LCD bar display is a very good solution. LCD streched screen is 1/2 or 1/3 cut from standard 16:9 LCD screen, with 2K or 4K resolution, and the stretched shape can attract more attention while save more installation space and much lighter in weight.
This 48.8inch is 1/3 cut from 55inch, with 4K resolution of 3840*720, with very high brightness of 1000nits, thus meet customer’s strict and high end demand in advertising market. In order to make it looks very smart, we attach a piece of tempered glass in front rather than metal bezel, which will ensure the good and high quality looking. It’s quite easy to make it tangilble by attaching a piece of capacitive film onto the tempered glass back, by doing so, cost can be much lower than customize PCAP touch screen especially for this LCD bar display especially if total quantity can’t reach the MOQ of customizing capactive touch screen.
For many markets, customers just want to input their own media player box signal into our LCD stretched screen, our monitor motherboard has HDMI in, DVI in and VGA in, also support 4K signal input, this technology can ensure the LCD bar dislay real 4K advertisment.
Specification of interactive stretched display :
We have full range of lcd bar display, various size can be cut here.
| Panel Specification: | ||||
| Scren size | 48.8inch (55″ 1/3 cut) | |||
| Active Display Area | 1209.6*226.5(V)mm | |||
| Visual Angle | 178/178 | |||
| TFT-LCD screen brand | Samsung, LG, AUO, BOE A Level | |||
| Brightness | 1000cd/m2 | |||
| Contract Ratio | 1000:1 | |||
| Resolution Ratio | 3840*720 | |||
| Color Components | 1.07B | |||
| Surface treatment | Anti-glare 3H | |||
| Response Time | 8ms | |||
| Power Consumption | 70W | |||
| Power Supply | Input:DC 8-36V, with adaptor | |||
| Material | Metal and tempered glass | |||
| Touch screen | 10-point PCAP foil touch | |||
| Color of Shell | Black | |||
| Life of Panel | 60000Hours | |||
| Bare dimension(estimate) | 1249*266*50mm | |||
| Wooden box size | 1pc/box, 1400*210*400mm, G.W.: 32kg | |||
| OSD Language | English, Chinese, French, German, Italian, Spanish, Arabic etc. | |||
| Working Temperature | 0°——50° | |||
| Storage Temperature | -20°——60° | |||
| Accessory | Power Cable, IR Remote Controller, Allen key | |||
| Mainboard Configuration | ||||
| Interface | HDMI in*1, DVI in*1, VGA in*1 | |||
Application:

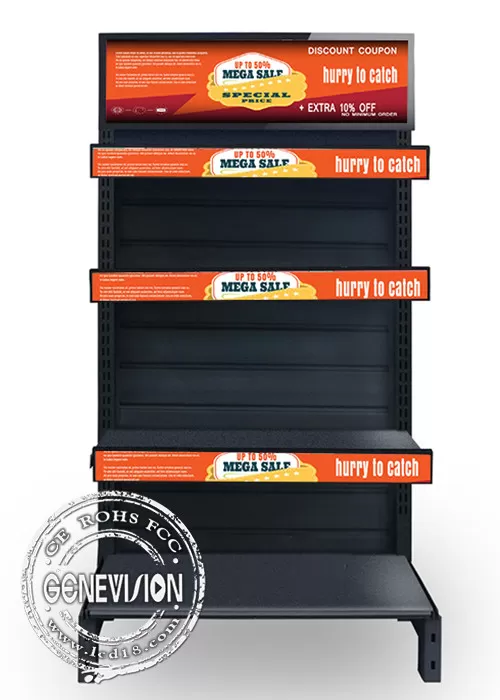

LCD stretched bar advertising display can be installed on Supermarket / domestic / retail shop/ book store shelf edge, also bar type LCD display can be installed on the wall or hanging on the ceiling of aiport, bus station, subway station and high speed railway station.
