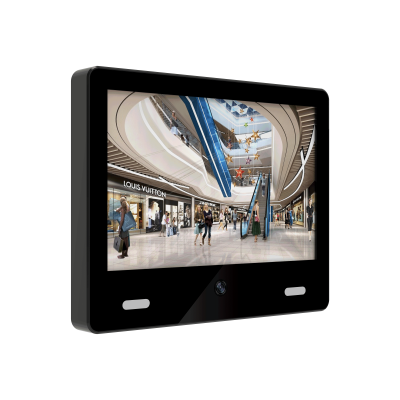

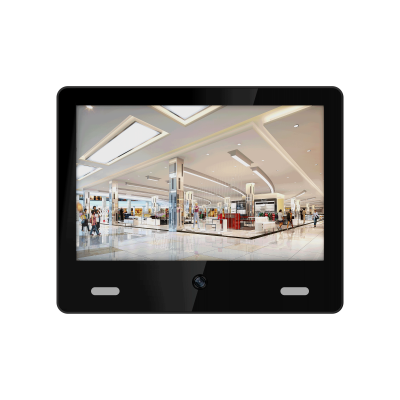

DAHUA 10.1'' Wall-mounted Digital Signage (PVM10-SAI100)
DAHUA 10.1'' Wall-mounted Digital Signage (PVM10-SAI100) - imagine 2
DAHUA 10.1'' Wall-mounted Digital Signage (PVM10-SAI100) - imagine 3
DAHUA 10.1'' Wall-mounted Digital Signage (PVM10-SAI100) - imagine 4
, , ,

DAHUA 10.1” Wall-mounted Digital Signage (PVM10-SAI100)

Favorite
Compara
Pretul afisat contine TVA (21%).

DAHUA 10.1” Wall-mounted Digital Signage (PVM10-SAI100)

  • Proiectat cu un panou de calitate industrială. Funcționează până la 24 de ore pe zi.
  • Sistem de operare Linux, mai stabil și mai rentabil.
  • Suportă intrare POE și DC, design cu sursă de alimentare extinsă.
  • Suportă redare Chrome, Firefox, browser Edge, reclame încărcate pe web pentru redare.
  • Cameră HD (1080P) încorporată, afișare imagine de înaltă calitate.
  • Ieșire video cameră IP, ieșire selecție tip codare H.264/H.265.
  • Suportă stocare DVR (până la 1TB card TF).
Display
Panel Dimensions 10.1 inch
Backlight LED
Resolution 1280 (H) x 800 (V)
Viewable Size 216.96mm x 135.6mm
Aspect Ratio 16:10
Brightness 250 cd/m² (typ.)
Contrast 1000:1
Display Colors 16.7 Million colors
Viewing Angle 170° (H); 170° (V)
Response Time 30ms (typ.)
Display Mode Landscape/Portrait
Built-in System
Processor RV1126 Quad-core Cortex-A7
Operating System Linux
RAM 1 GB
ROM 8 GB
Connectivity
Interface Micro USB×1; TF card slot×1; LAN in×1
Network Port RJ45×1 10M/100M
Wi-Fi No (Can be customized)
Speaker
Built-in Speaker 2 × 2 W
Camera
Sensor 1/2.9”, 2MP CMOS
Encoding Format H.264 / H.265
Effective Pixels 1920×1080
Lens 3.3mm Fixed Lens
Field of View H: 78°; V: 48°; D: 85°
Integration Protocol ONVIF
Recording Resolution 1920×1080@25FPS
Motion Detection Support
General
Power Supply DC12V±10%/POE 48V-56V±10%
Consumption (Typical) 12W
Operating Temperature 0°C to +40°C(+32°F to +104°F)(avoid direct sunlight)
Storage Temperature -20°C to +60°C(-4°F to +140°F)
Operating Humidity 10%–85% (RH), non-condensing
Storage Humidity 10%–90% (RH), non-condensing
Product Material Metal casing
Casing Color (Frame/Rear) Black
Product Dimensions 252mm × 200mm × 26mm
Packaging Dimensions 305mm × 240mm × 75mm
Net Weight 1.36kg
Gross Weight 2.3kg
VESA 75mm×75mm
Accessory Mount bracket, User’s manual, legal and regulatory

information
Function
Image Settings chroma, contrast, brightness, sharpness, saturation, wide dynamics, backlight compensation, strong light

suppression, 3D noise reduction
Video You can choose to record normally and trigger motion

detection/face detection/alarm input to record
Advertising Support full-screen or half-screen image or video ads less

than 1GB in size
Warning Information

and Logo

 The warning information supports warning pictures and

warning voices, and the logo picture can set the size and

position of the picture
External Ports
Name Description
ADB/USB It is used to download the firmware
TF TF card slot (max 1TB)
LAN RJ45, 100MB
ALARM OUT Alarm output interface. The default state is low level; high level is the trigger state.
ALARM IN Alarm input interface, two modes of open circuit or short circuit are optional.
GND GND
NO Normal open contact point of the relay
COM Common contact point of the relay
NC Normal close contact point of the relay
EMERGENCY Emergency mode trigger interface, external trigger level DC 3-48V
FACE OUT Face detection alarm output, the default state is low level; high level is the trigger state.
MOTION OUT Motion detection alarm output, the default state is low level; high level is the trigger state.
GND DC power GND
12V DC power 12V+
Outlook instructions
No. Name Description
A Indicators white indicators
B Screen 10.1 inch
C Sensor 1080P
D VESA Holes 75mm × 75mm
E Wiring Duct TF card slot, alarm in and output, power, RJ45 etc.
